Commercial 100 (C101) Series
A 101.6 × 50 mm commercial frame for multi-residential, mixed-use and commercial façades — our most comprehensively tested platform. Available in thermally broken (TB101) and non-thermally-broken versions.
Key features
- 101.6 × 50 mm aluminium frame
- Fixed, awning, sliding, casement, sashless and double-hung windows
- Sliding, stacking and hinged doors (P35 / P45)
- Thermally broken (TB) variants available
- Double glazed toughened argon-filled IGUs as standard
- Sashless window: slim, clean sightlines with a sliding vertical operation — ideal for heritage-style and contemporary façades
Specifications
| Frame | 101.6 × 50 mm |
|---|---|
| Windows | Fixed, awning, sliding, casement, sashless, double-hung |
| Doors | Sliding, stacking, hinged (P35, P45) |
| Standard glazing | 5/12Ar/5 or 6/12Ar/6 toughened DGU |
| Installation | Timber reveal, subsill/subhead & angles, subframe, 35 mm fin |
Tested specimen performance (AS 2047)
| Specimen | Serviceability | Ultimate | Water |
|---|---|---|---|
| C101 Fixed Window 1800 × 1000, DGU 6/12/6 | n/a | ±5300 Pa | 1000 Pa |
| C101 Awning Window 1800 × 1000 | ±1600 Pa | ±5300 Pa | 450 Pa |
Tested specimen performance. Independently tested to AS 2047 by a NATA-accredited laboratory. Test reports available on request.

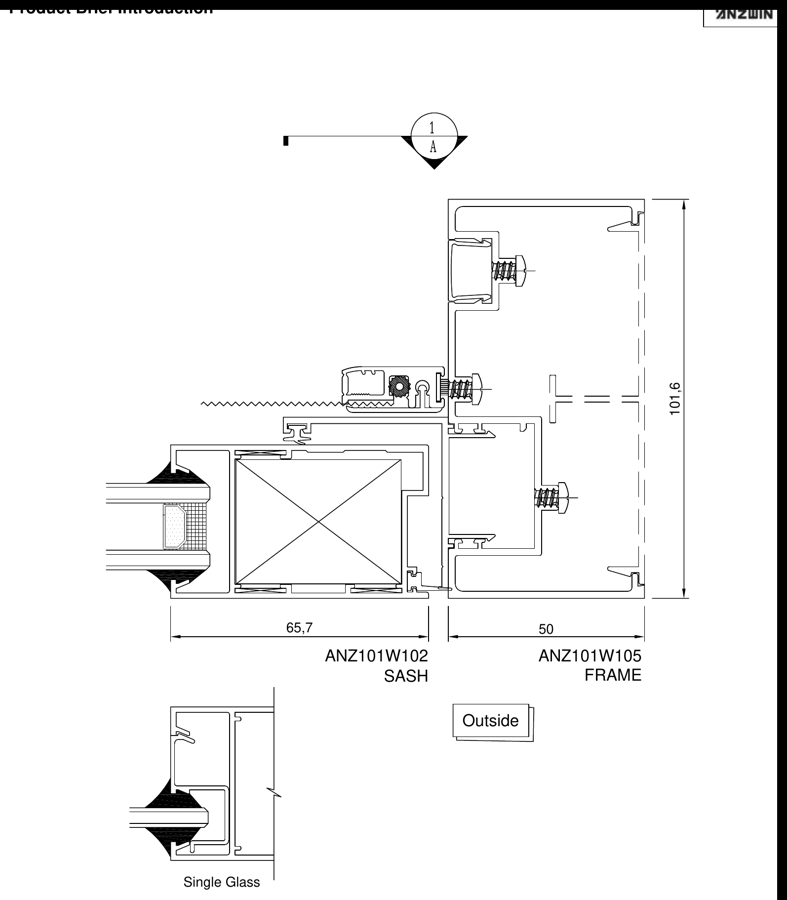

Section drawings
Representative sections from the ANZWIN technical manual. Full shop drawings are prepared for every project.
Glazing
| Type | Options |
|---|---|
| Standard double glazed (IGU) | 5 mm toughened / 12 mm argon / 5 mm toughened · 6 / 12 Ar / 6 · 5 / 9 Ar / 5 |
| Toughened single | 6, 8, 10, 12 mm |
| Laminated | 8.76, 10.76, 11.52 mm |
| Coatings & tints | Low-E, clear, obscure, grey tint |
All toughened glass is Grade A safety glass; double glazed units are argon filled. Glass to AS 1288 & AS 2208; IGUs to AS/NZS 4666.
Powder-coat colours
Indicative colours only — screen colours vary. Ask for physical powder-coat samples.
Flyscreen options
- Stainless steel mesh
- Heavy-duty stainless steel mesh
- High-quality alloy mesh
- Fibreglass mesh
Installation options
- Timber reveal
- Subsill / subhead & angles
- Subframe
- 35 mm fin
Download the company brochure (PDF) or request AS 2047 test reports for certification.
Send us your plans. We'll come back with a square-metre quote.
Fully custom sizes, shop drawings for sign-off and free technical support from quote to delivery.
